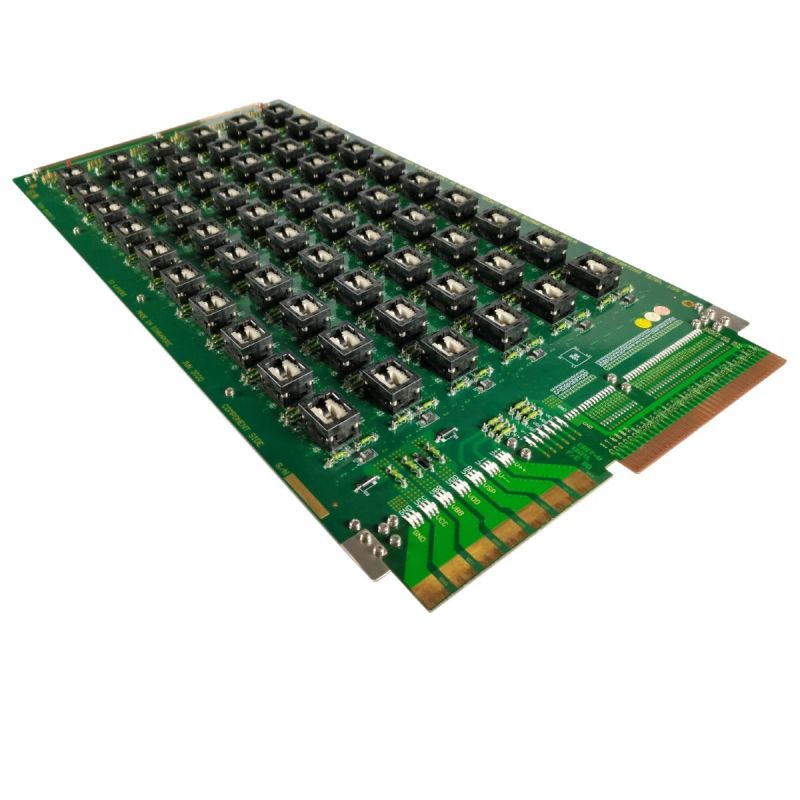

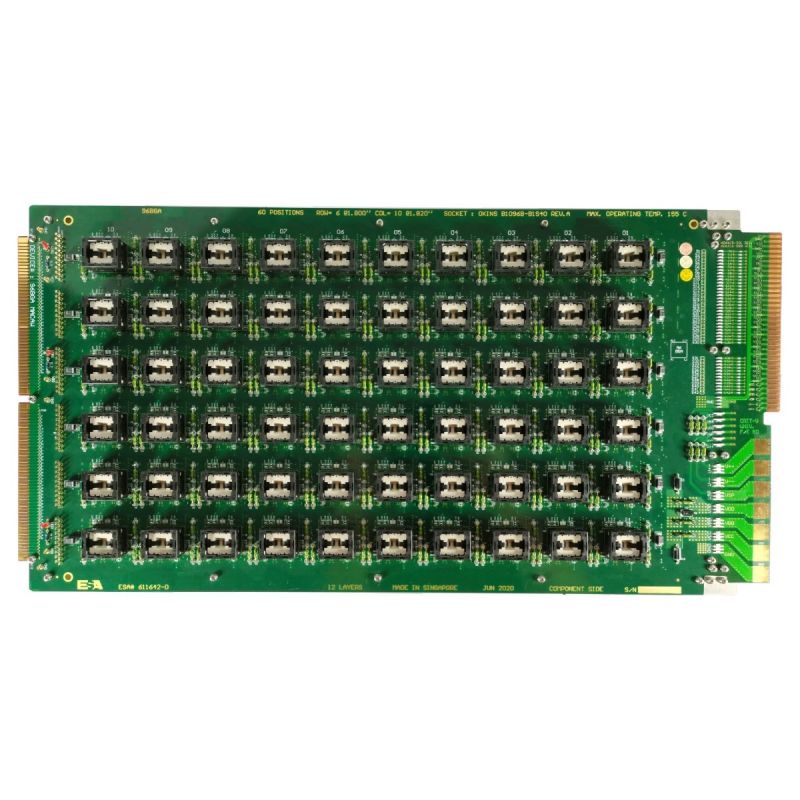

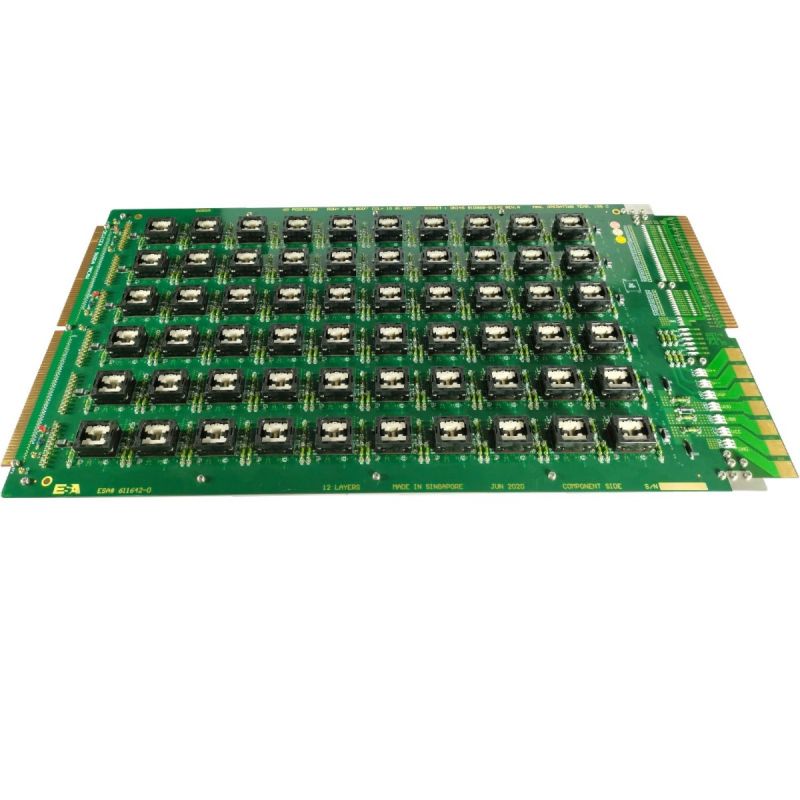

Burn in Board (BIB)

SKU
Burn in Board (BIB)

Types of Burn in Test Process

Static Burn In - A burn-in system applies extreme voltage or currents and temperatures to each device without operating or exercising the device.

Dynamic Burn In- the device is exposed to high voltage and temperature extremes while being subjected to various input stimuli .

TDBI (Test During Burn-In)- Test during burn-in systems monitor and apply test vectors to a device while it is undergoing burn-in stress.This method ensures that devices are being powered up and input tests are being applied as intended.


Types of Burn In Board Test

HAST Board (Higly Accelerated Stress Test) Board - HAST uses a high temperature (105°C), high relative humidity (about 85%), and high atmospheric pressure conditions (up to 4 atm).HAST test results are available within 96-100 hours.

THB Board (Temperature Humidity Bias) - THB holds 85°C/85% RH condition while bias loads are applied to the samples.THB test results are available within 1000 hours.

HTOL Board (High Temperature Operating Life) - used to determine the reliability of devices under operation at high temperature conditions over an extended period of time.It consists of subjecting the parts to a specified bias or electrical stressing, for a specified amount of time, and at a specified high temperature essentially just a long-term burn-in).

TC (Temperature cycling) - the units was subject to extreme high and low temperatures transitions between the two.The test is performed by cycling the unit's exposure to these conditions for a predetermined number of cycles.

Types of Burn in Test Process

Static Burn In - A burn-in system applies extreme voltage or currents and temperatures to each device without operating or exercising the device.

Dynamic Burn In- the device is exposed to high voltage and temperature extremes while being subjected to various input stimuli .

TDBI (Test During Burn-In)- Test during burn-in systems monitor and apply test vectors to a device while it is undergoing burn-in stress.This method ensures that devices are being powered up and input tests are being applied as intended.


Types of Burn In Board Test

HAST Board (Higly Accelerated Stress Test) - HAST uses a high temperature (105°C), high relative humidity (about 85%), and high atmospheric pressure conditions (up to 4 atm). HAST test results are available within 96-100 hours.

THB Board (Temperature Humidity Bias) - THB holds 85°C/85% RH condition while bias loads are applied to the samples.THB test results are available within 1000 hours.

HTOL Board (High Temperature Operating Life) - used to determine the reliability of devices under operation at high temperature conditions over an extended period of time.It consists of subjecting the parts to a specified bias or electrical stressing, for a specified amount of time, and at a specified high temperature essentially just a long-term burn-in).

TC (Temperature cycling) - the units was subject to extreme high and low temperatures transitions between the two.The test is performed by cycling the unit's exposure to these conditions for a predetermined number of cycles.
