Function and Application

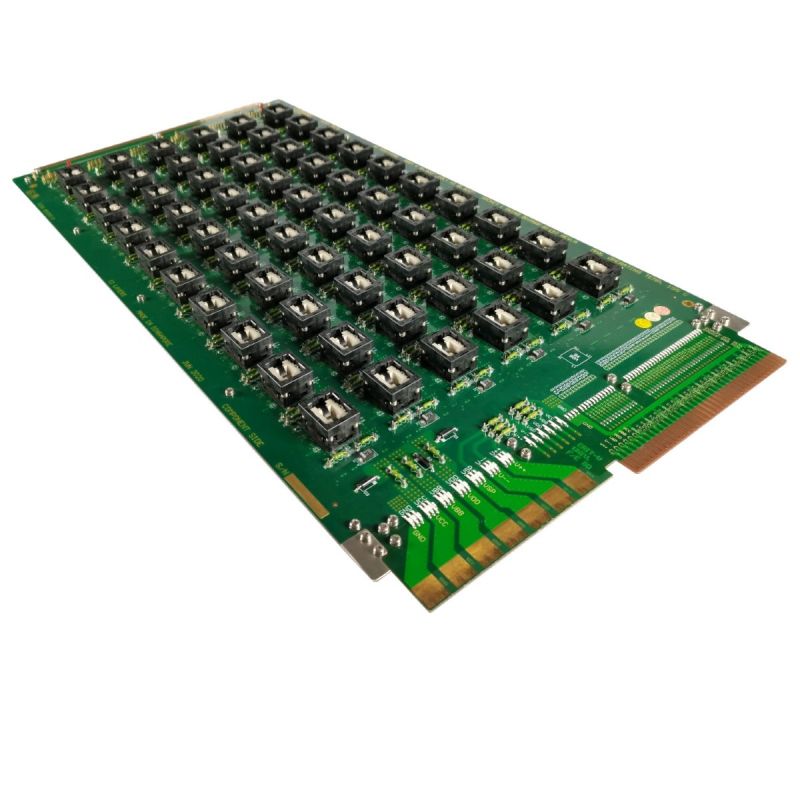

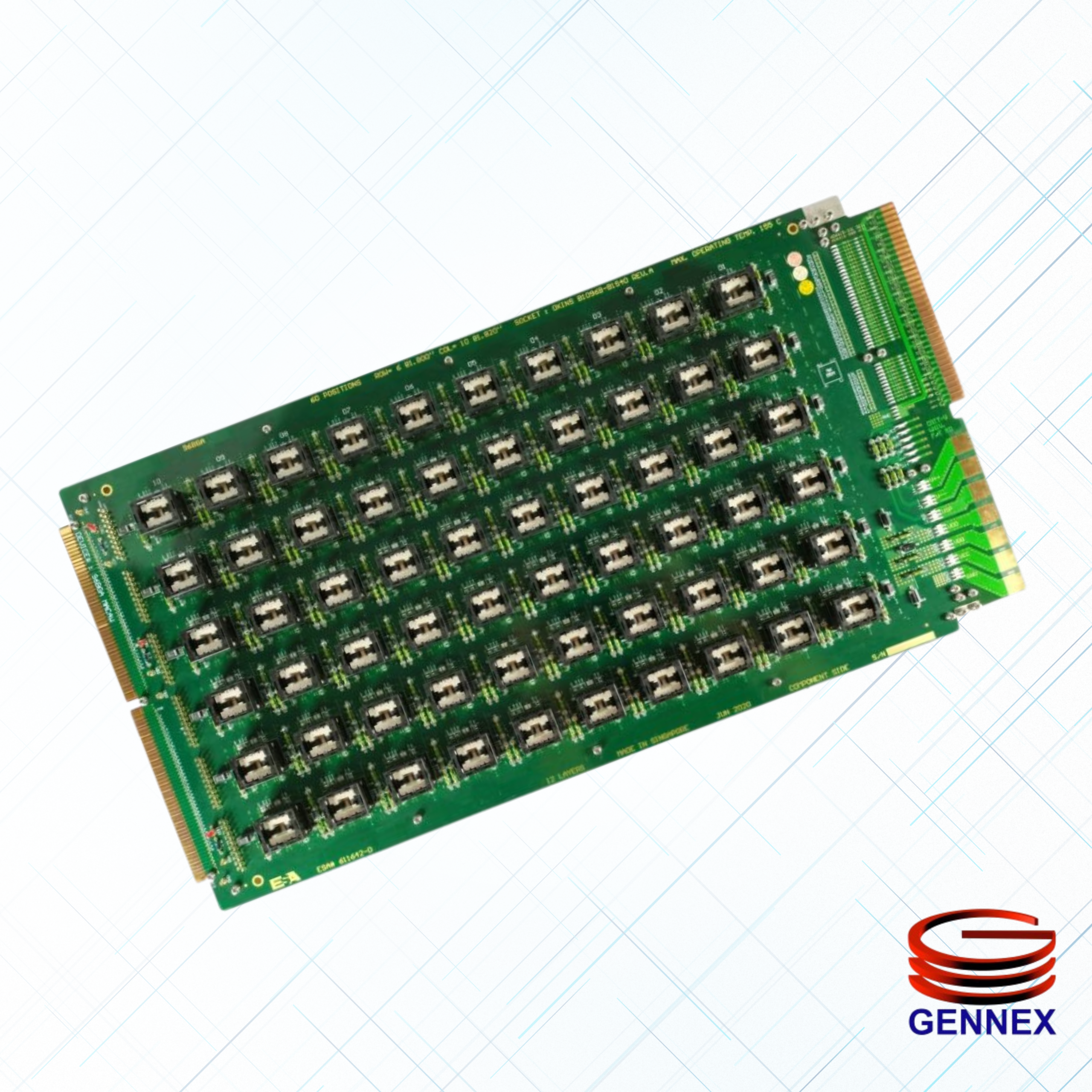

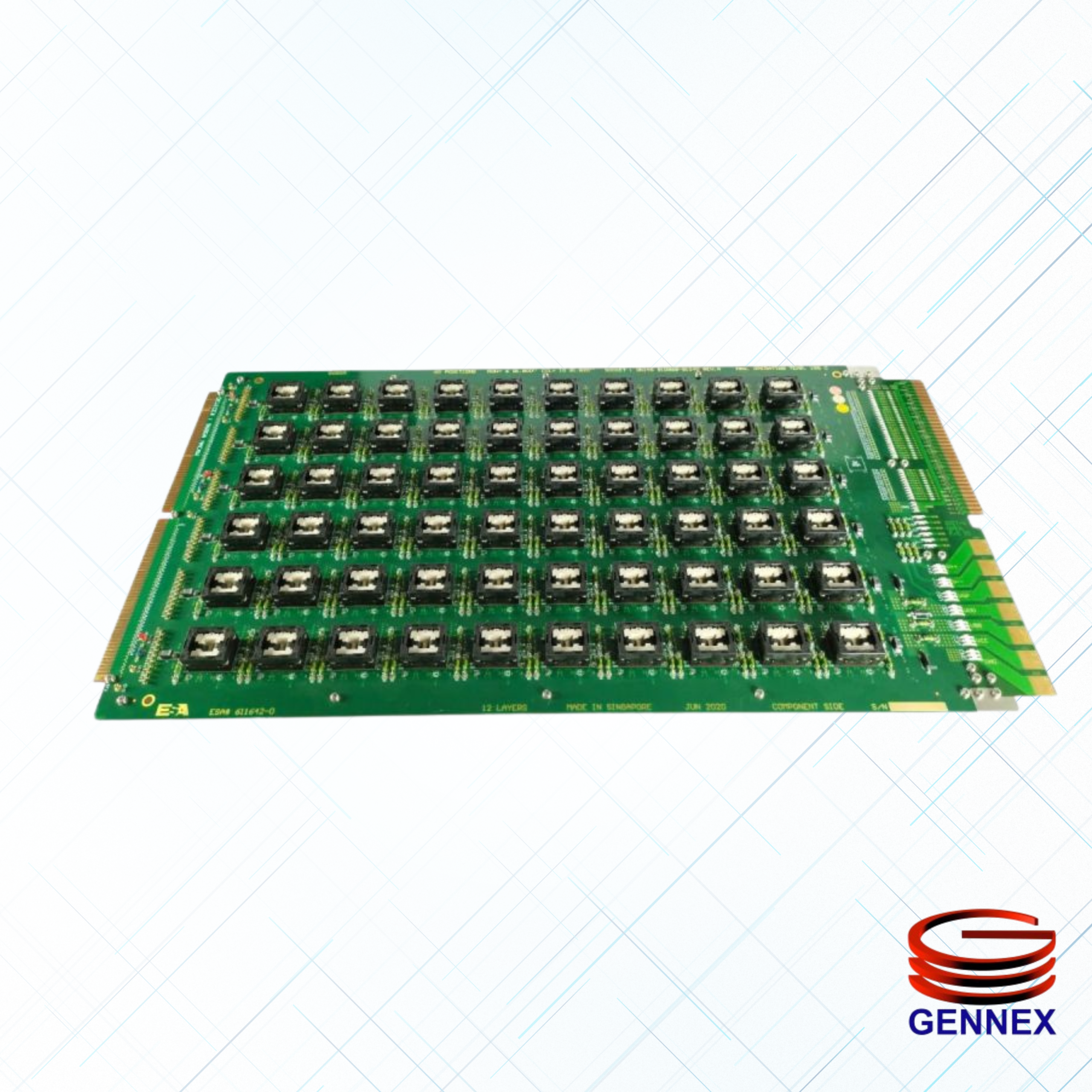

Burn In Boards are specialized test platforms for printed circuit boards. They simulate real-world operating conditions, including heat cycles and electrical stress, to ensure that PCBs can withstand long-term use.
Key functions include:
Types of Burn-In Test Processes
Burn-in testing ensures that PCBs and components can withstand extreme conditions. Semicon offers multiple test methodologies depending on the application and stress requirements:
Highly Accelerated Stress Test combines high temperature (105°C), high relative humidity (≈85%), and elevated atmospheric pressure (up to 4 atm). This accelerated testing can yield results within 96–100 hours, providing quick insight into reliability.
Temperature Humidity Bias maintains conditions of 85°C and 85% relative humidity while bias loads are applied to the components. Results are available within approximately 1000 hours, simulating long-term environmental stress.
High Temperature Operating Life tests reliability by operating devices under elevated temperatures for extended periods. Components are subjected to electrical stress at high temperatures to simulate long-term operational life.
Temperature Cycling is when units are exposed to repeated extreme high and low temperature transitions. This cyclic testing stresses materials and solder joints, helping to identify weaknesses caused by thermal expansion and contraction.
Complete PCB Solutions from Gennex Semicon
Beyond Burn In Boards, Gennex Semicon offers end-to-end PCB services to streamline design, testing, and production. These solutions ensure consistency, reduce errors, and help maintain high product quality.
Why Choose Us on Your Burn In Board Needs:
Gennex Semicon combines regional expertise with technical support, ensuring that the boards are precisely designed, delivered promptly, and fully supported throughout the testing process.
FAQs About Burn In Board (BIB)
Pricing depends on project-specific factors such as quantity, customization, and testing complexity. Gennex Semicon provides personalized quotes to align with both technical needs and budget considerations.
By exposing potential defects early, the boards reduce rework and waste, increase manufacturing yield, and ensure that only thoroughly validated PCBs move into production. Talk to our experts to learn more about BIB quality.
Absolutely. PCB design experts at Gennex Semicon can make it work by tailoring in size, layout, and component configuration to match the unique requirements of any PCB design or testing scenario.
Yes. The boards are built to endure repeated stress-testing cycles without losing accuracy, offering a cost-effective solution for continuous PCB validation.
